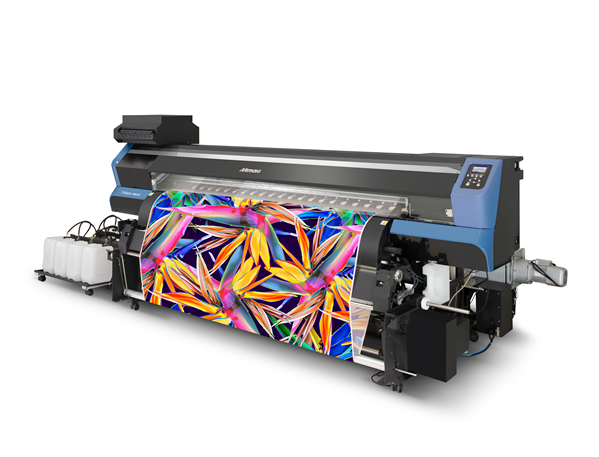

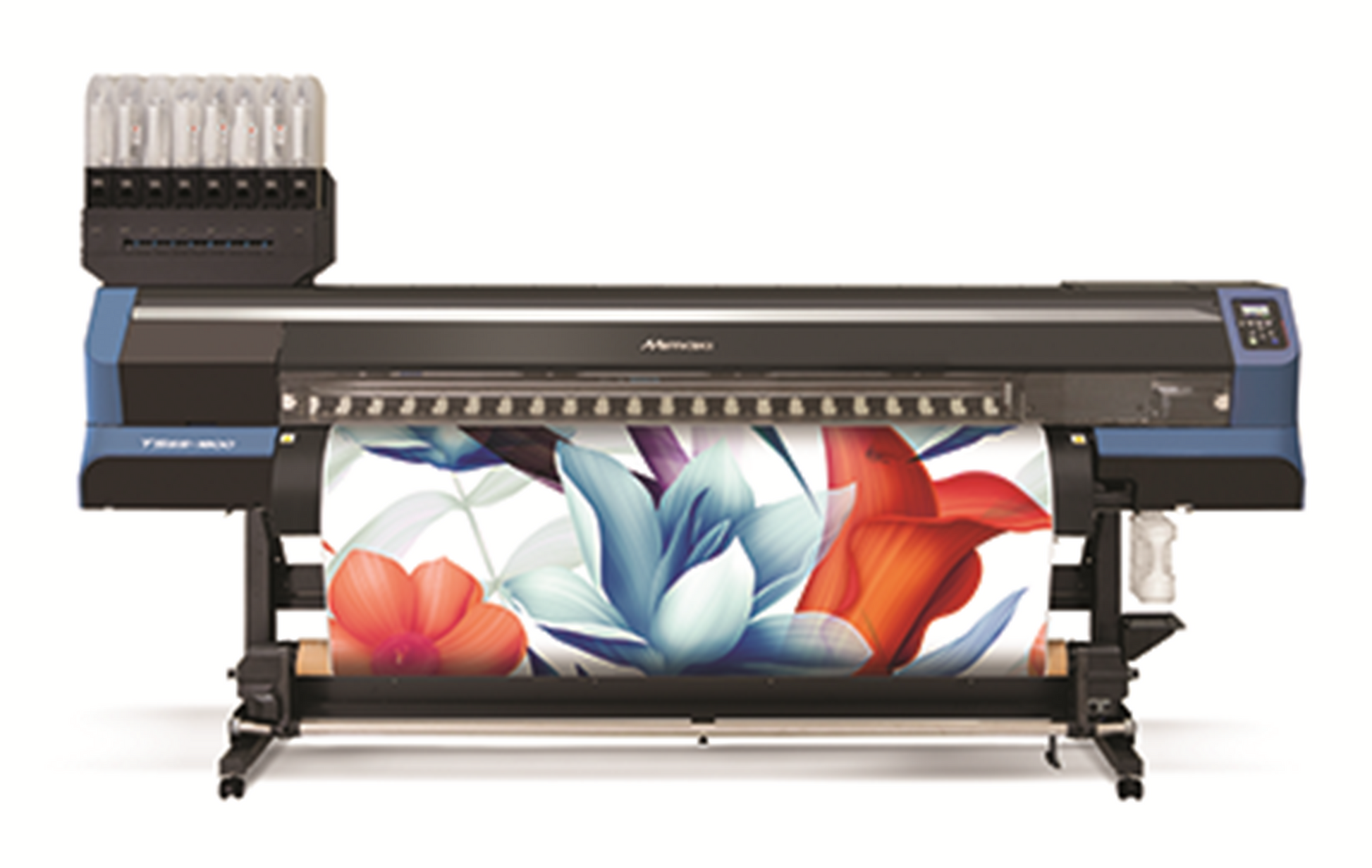

TS55-1800
Couldn't load pickup availability
About the Product
Ultimate Scalability For Continuous Long-Run Printing
Mimaki’s TS55-1800 digital fabric printer offers the following:
- Maximum productivity of 1,453 SqFt/Hr
- Mini jumbo roll that can support a paper length up to 8,202 feet
- 22 lb ink supply, which reduces downtime and running costs
- Extended heater options for increased ink drying capability (also prevents the medium from blocking)
- “MAPS” functionality, which reduces banding by providing graduation to printed pass boundaries
- Feed correction function by print mode; different values can be applied to each print mode, for less work and fast production
- Dye-sublimation inks available in 4, 6 and 8 color configurations, including fluorescent pink and yellow
- Inks hold ECO PASSPORT by Oeko-Tex® certification for safe and sustainable textile chemicals
- Upgraded with the newest TxLink4 textile RIP software
- RIP software RasterLink6 included
Specifications
| Printhead |
Four in-line on-demand piezo heads |
| Print resolution |
360 dpi, 480 dpi, 600 dpi, 540 dpi, 720 dpi, 1080 dpi, 1200 dpi |
| Print speed (4 color mode) |
up to 1453.13 SqFt/Hr (135 m2/h) |
| Maximum Print Area |
76.4″ (1940 mm) |
| Maximum media width |
76.8″ (1950 mm) |
| Maximum Media Thickness |
up to 0.04″ (1 mm) |
| Maximum Media Weight |
99.2, 220.5, 661.4 lbs. (45, 100, 300 kg) |
| Ink Type |
U.S. & Canada – Sb610 | Mexico, Central & South America- Sb610 |
| Interface |
Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power Supply |
Single phase AC 100-120 V/AC 200-240 V x1 |
| Power Consumption |
(AC 100 V) 1.44kW (AC 200 V) 1.92kW or less |
| Operational Environment |
Temperature 68° – 86° F (20-30° C) |
| Dimensions (W × D × H) |
127.5″ x 28″ x 73.1″ (323.9 x 71.1 x 185.7 cm) |
| Weight |
Main unit: 445.3 lbs. (202 kg) |
Inks
| Dye Sublimation Ink (SB610) | Blue | Magenta | Yellow | Black | Light Blue | Light Magenta | Light Black | Fluorescent Pink | Fluorescent Yellow | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2L Ink Pack | SB610-BLT-2L | SB610-MT-2L | SB610-YT-2L | SB610-KT-2L | SB610-LBT-2L | SB610-LMT-2L | SB610-LKT-2L | SB610-FPT-2L | SB610-FYT-2L | |
| 10 Kg (22 lbs.) Tank | SB610-BLT-BJ | SB610-MT-BJ | SB610-YT-BJ | SB610-KT-BJ | SB610-LBT-BJ | SB610-LMT-BJ |
