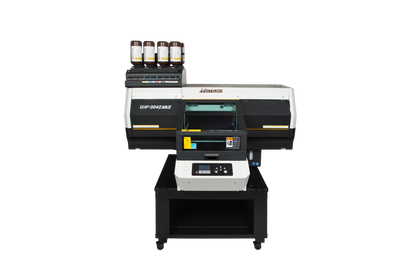

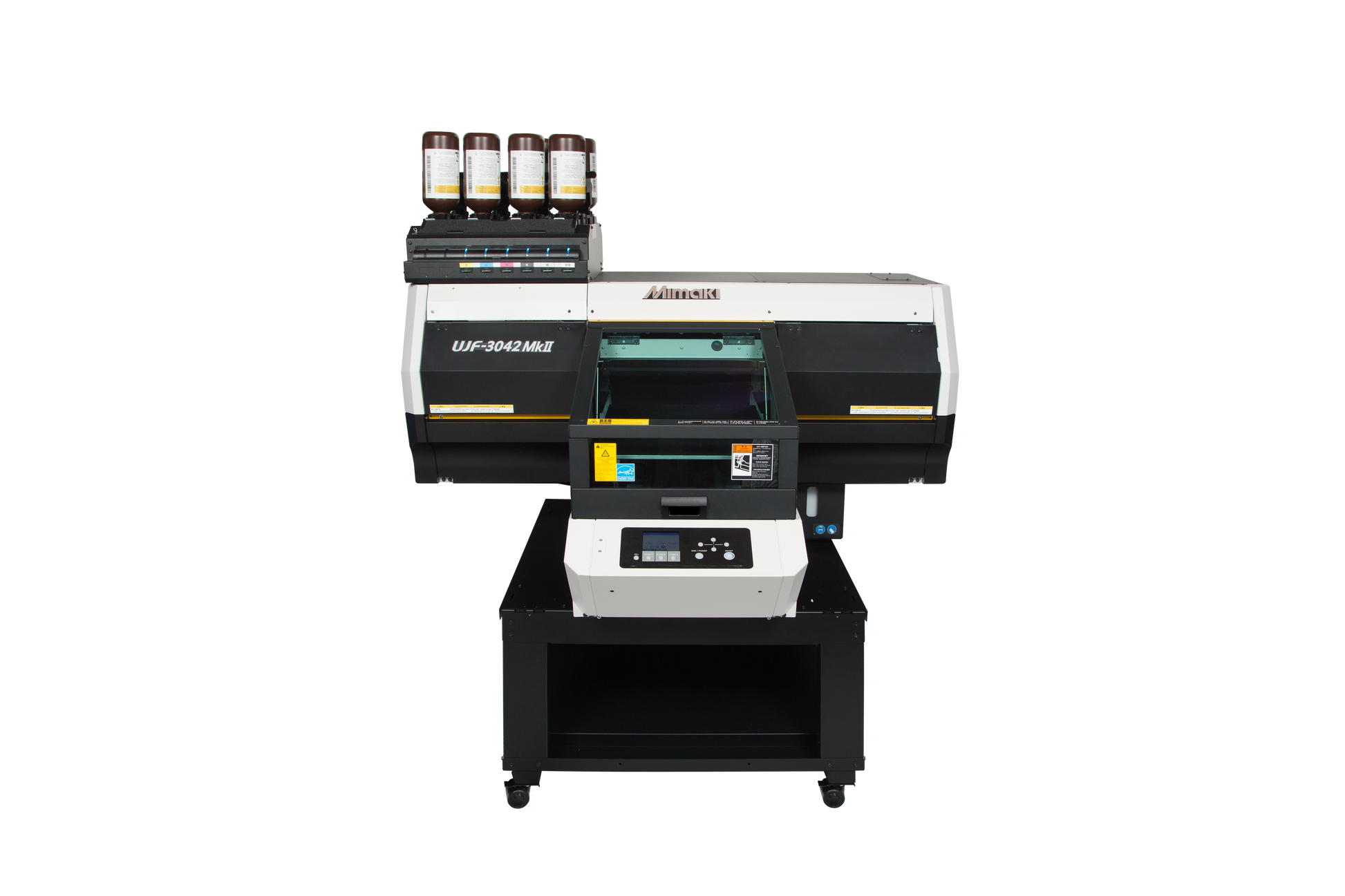

UJF-3042 MkII
Couldn't load pickup availability
About the Product
Limitless Opportunities For Product Customization
- Available with an 11.8” x 16.5” print area; up to 6” thick
- Print on a variety of substrates, including plastics, metals, wood, leather, glass, and laminates
- Enclosed print area reduces dust contamination and UV exposure
- Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
- Pair with our desktop 3D printer to produce jigs, molds for thermoforming, or custom models
- Mimaki Clear Control (MCC) for smoother and cleaner clear effects
- RIP software RasterLink6 included
- Adding the Kebab option allows for printing on cylindrical objects of varying sizes.
- Exceptional productivity for on-demand production
Specifications
| Printhead |
UJF-3042MkII EX: Four on-demand piezo heads in a staggered array |
| Print Resolutions |
Maximum: 1200 x 1200 dpi |
| Print Speed (4 Color Mode) |
up to 5.1 min / bed SqFt/Hr (5.1 min / bed m2/h) |
| Maximum Print Area |
11.8″ x 16.5″ (300 x 420 mm) |
| Maximum media width |
11.8″ (300 mm) |
| Maximum Media Thickness |
up to 6.02″ (153 mm) |
| Maximum Media Weight |
11.0 lbs. (5.0 kg) |
| Ink Type |
U.S. & Canada- LH-100, LUS-120, LUS-150 | Mexico, Central & South America- LH-100, LUS-120, LUS-150 |
| Interface |
Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power Supply |
Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz |
| Power Consumption |
AC100V: 1,000W or less |
| Operational Environment |
Temperature 68° – 86° F (20-30° C) |
| Dimensions (W × D × H) |
53.4″ x 50.8″ x 33.7″ (135.6 x 129 x 85.6 cm) |
| Weight |
297.6 lbs. (135 kg) |
| Certifications |
VCCI class A / FCC class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1 |
Inks
| UJF-3042 MkII UV Curable Ink (LH-100) | Cyan | Magenta | Yellow | Black | White | Clear |
|---|---|---|---|---|---|---|
| 250ml Bottle | I-LH100-C-B2-1 | I-LH100-M-B2-1 | I-LH100-Y-B2-1 | I-LH100-K-B2-1 | I-LH100-W-B2-1 | I-LH100-CL-B2-1 |
| 1L Bottle | LH100-C-BA | LH100-M-BA | LH100-Y-BA | LH100-K-BA | LH100-W-BA | LH100-CL-BA |
| UJF-3042 MkII Curable Ink (LUS-120) | Cyan | Magenta | Yellow | Black | White | Clear |
|---|---|---|---|---|---|---|
| 250ml Bottle | I-LUS12-C-B2-1 | I-LUS12-M-B2-1 | I-LUS12-Y-B2-1 | I-LUS12-K-B2-1 | I-LUS12-W-B2-1 | I-LUS12-CL-B2-1 |
| 1L Bottle | LUS12-C-BA | LUS12-M-BA | LUS12-Y-BA | LUS12-K-BA | LUS12-W-BA | LUS12-CL-BA |
| UJF-3042 MkII UV Curable Ink (LUS-150) | Cyan | Magenta | Yellow | Black | White |
|---|---|---|---|---|---|
| 1L Bottle | LUS15-C-BA | LUS15-M-BA | LUS15-Y-BA | LUS-15-K-BA | LUS-15-W-BA |
| UJF-3042 MkII UV Primer (PR-200) | Primer |
|---|---|
| 250ml Bottle | PR200-Z-BA |
| 1L Bottle | PR200-Z-BA |
| UJF-3042 MkII EX UV Curable Ink (LH-100) | Cyan | Magenta | Yellow | Black | White | Clear |
|---|---|---|---|---|---|---|
| 250ml Bottle | I-LH100-C-B2-1 | I-LH100-M-B2-1 | I-LH100-Y-B2-1 | I-LH100-K-B2-1 | I-LH100-W-B2-1 | I-LH100-W-B2-1 |
| 1L Bottle | LH100-C-BA | LH100-M-BA | LH100-Y-BA | LH100-K-BA | LH100-W-BA | LH100-W-BA |
| UJF-3042 MkII EX UV Curable Ink (LUS-120) | Cyan | Magenta | Yellow | Black | White | Clear |
|---|---|---|---|---|---|---|
| 250ml Bottle | I-LUS12-C-B2-1 | I-LUS12-M-B2-1 | I-LUS12-Y-B2-1 | I-LUS12-K-B2-1 | I-LUS12-W-B2-1 | I-LUS12-W-B2-1 |
| 1L Bottle | LUS12-C-BA | LUS12-M-BA | LUS12-Y-BA | LUS12-K-BA | LUS12-W-BA | LUS12-W-BA |
| UJF-3042 MkII EX UV Curable Ink (LUS-150) | Cyan | Magenta | Yellow | Black | White |
|---|---|---|---|---|---|
| 1L Bottle | LUS-15-C-BA | LUS-15-M-BA | LUS-15-Y-BA | LUS-15-K-BA | LUS-15-W-BA |
| UJF-3042 MkII EX UV Primer (PR-200) | Primer |
|---|---|
| 250ml Bottle | PR200-Z-BA |
| 1L Bottle | PR200-Z-BA |
