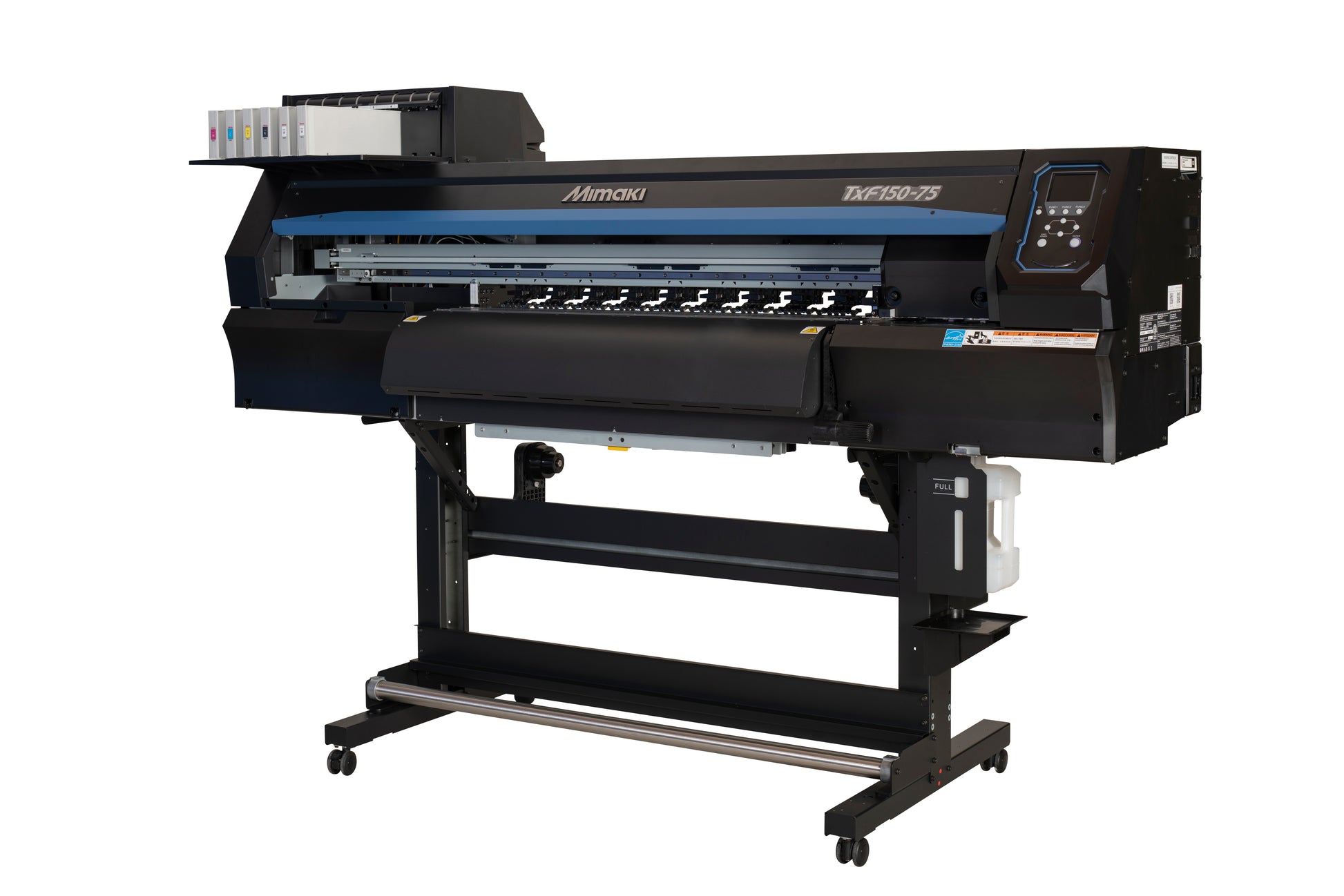

TxF150-75
$12,995.00 USD
$12,995.00 USD
Sale
Sold out
Re-stocking soon
Couldn't load pickup availability
About the Product

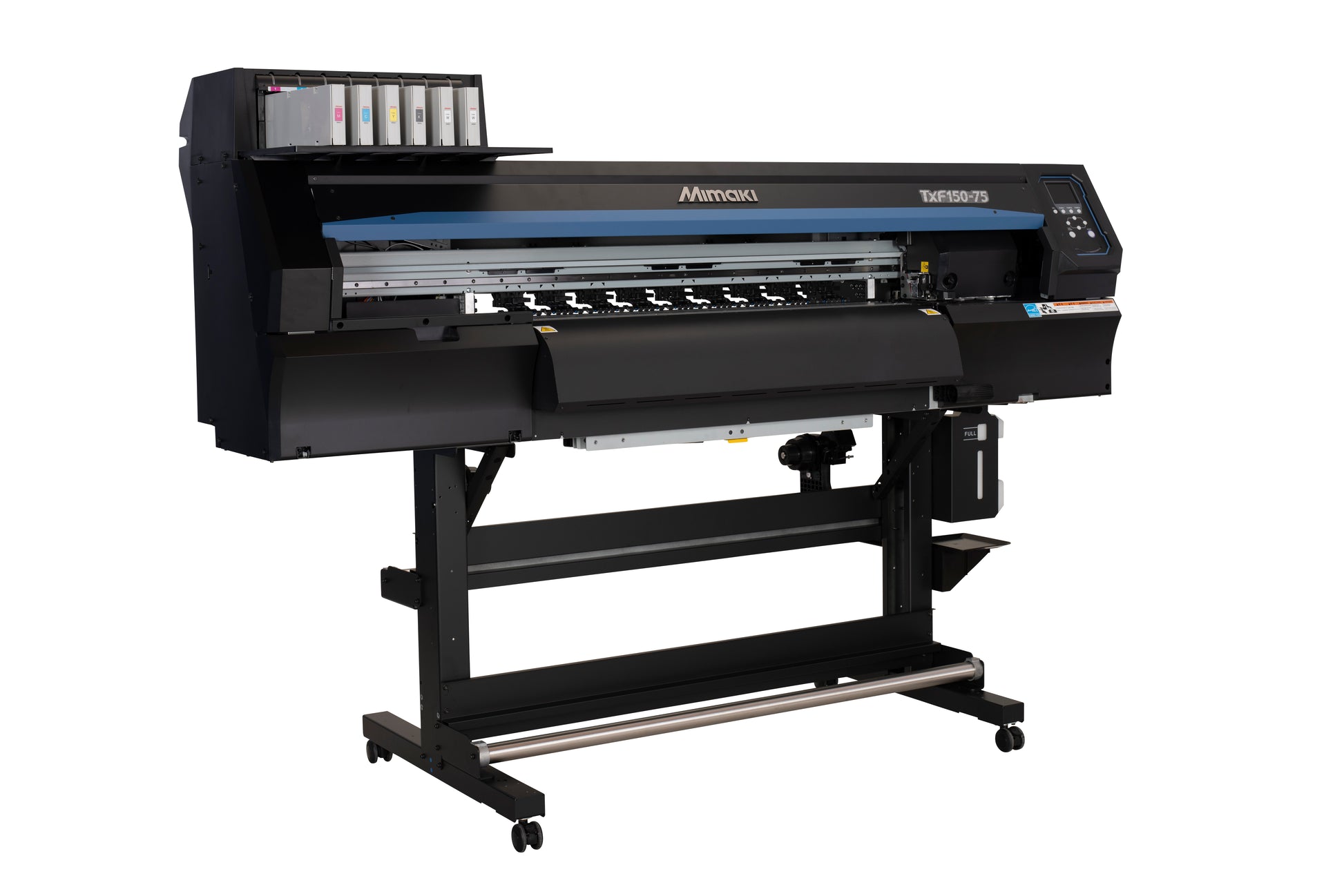

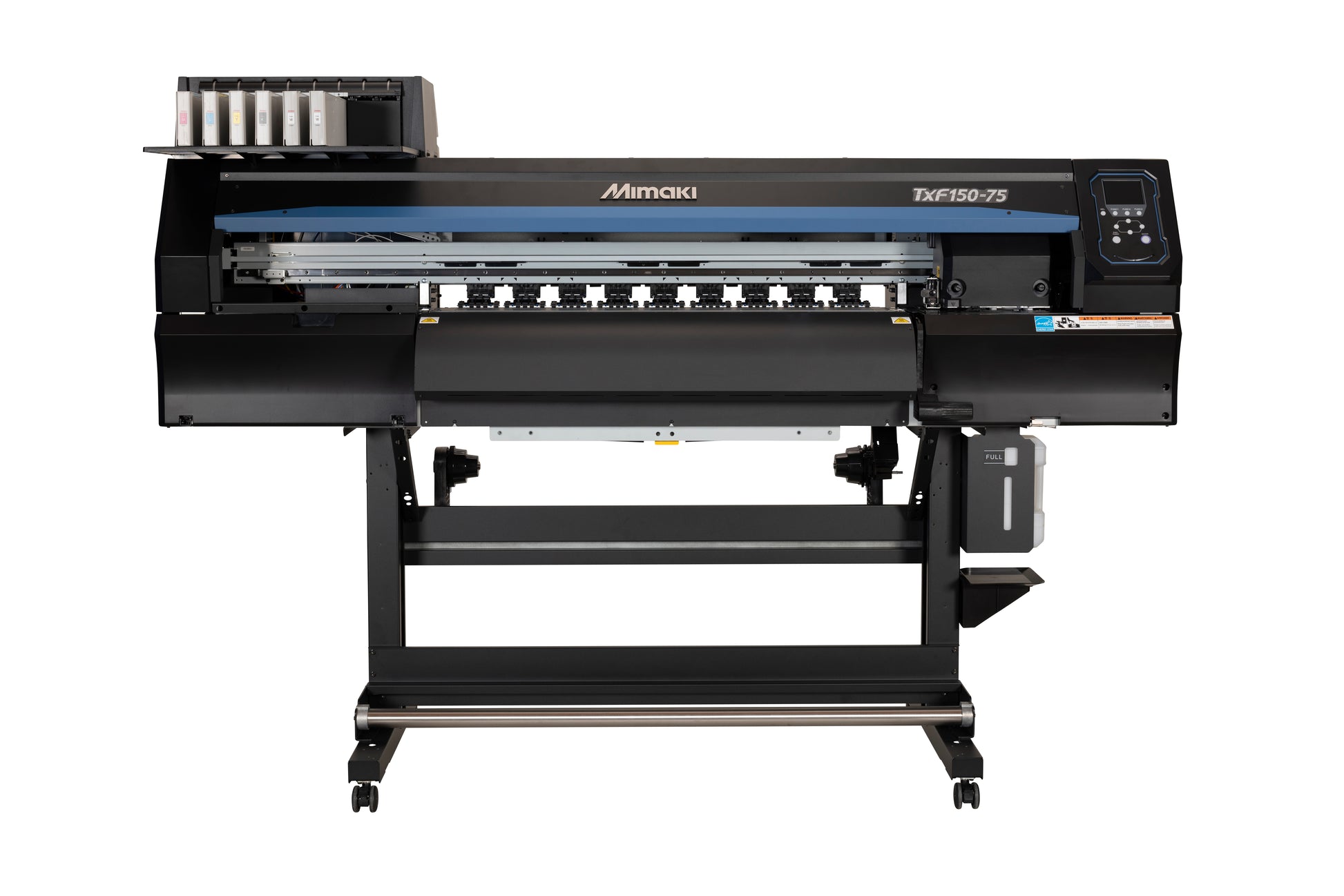

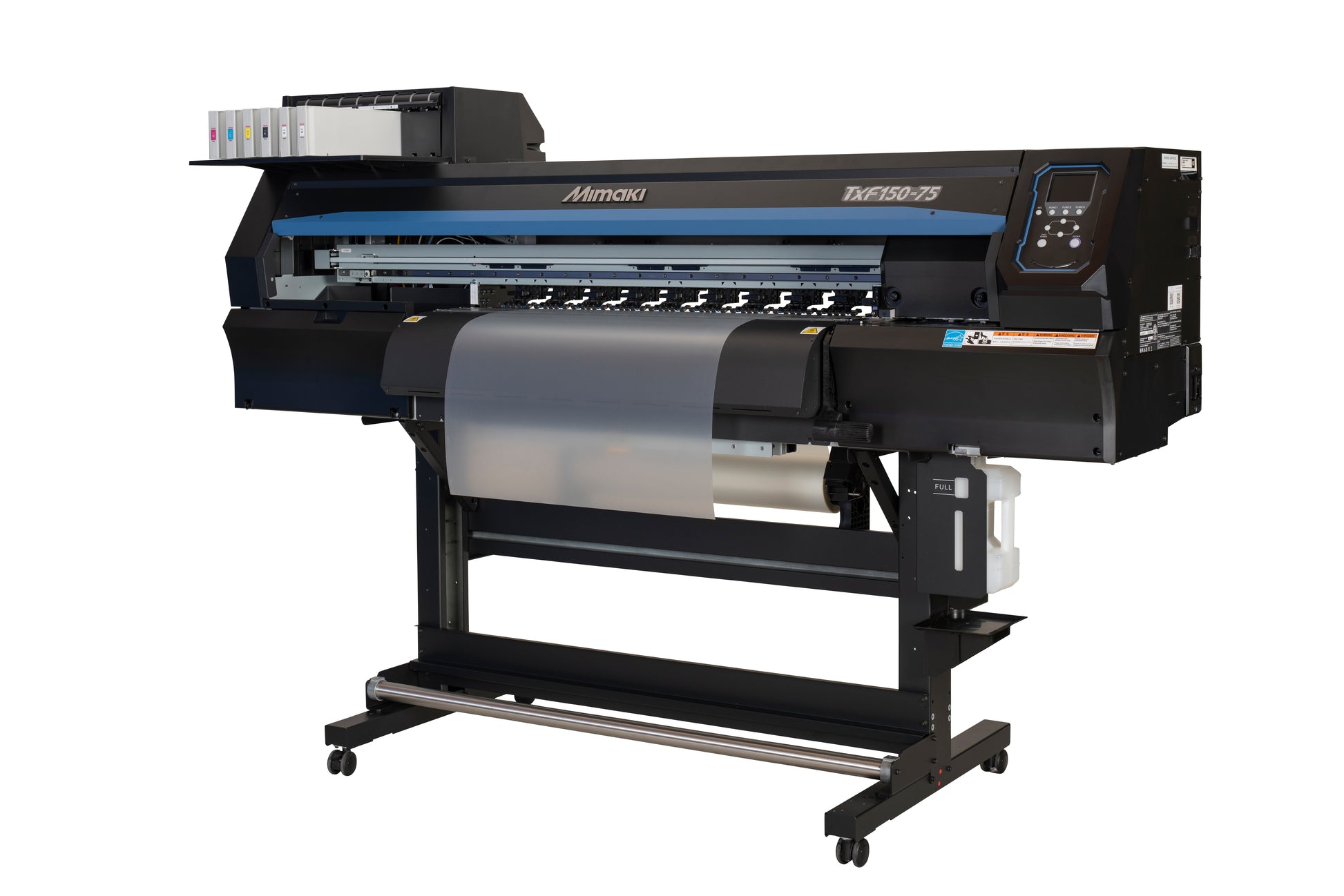

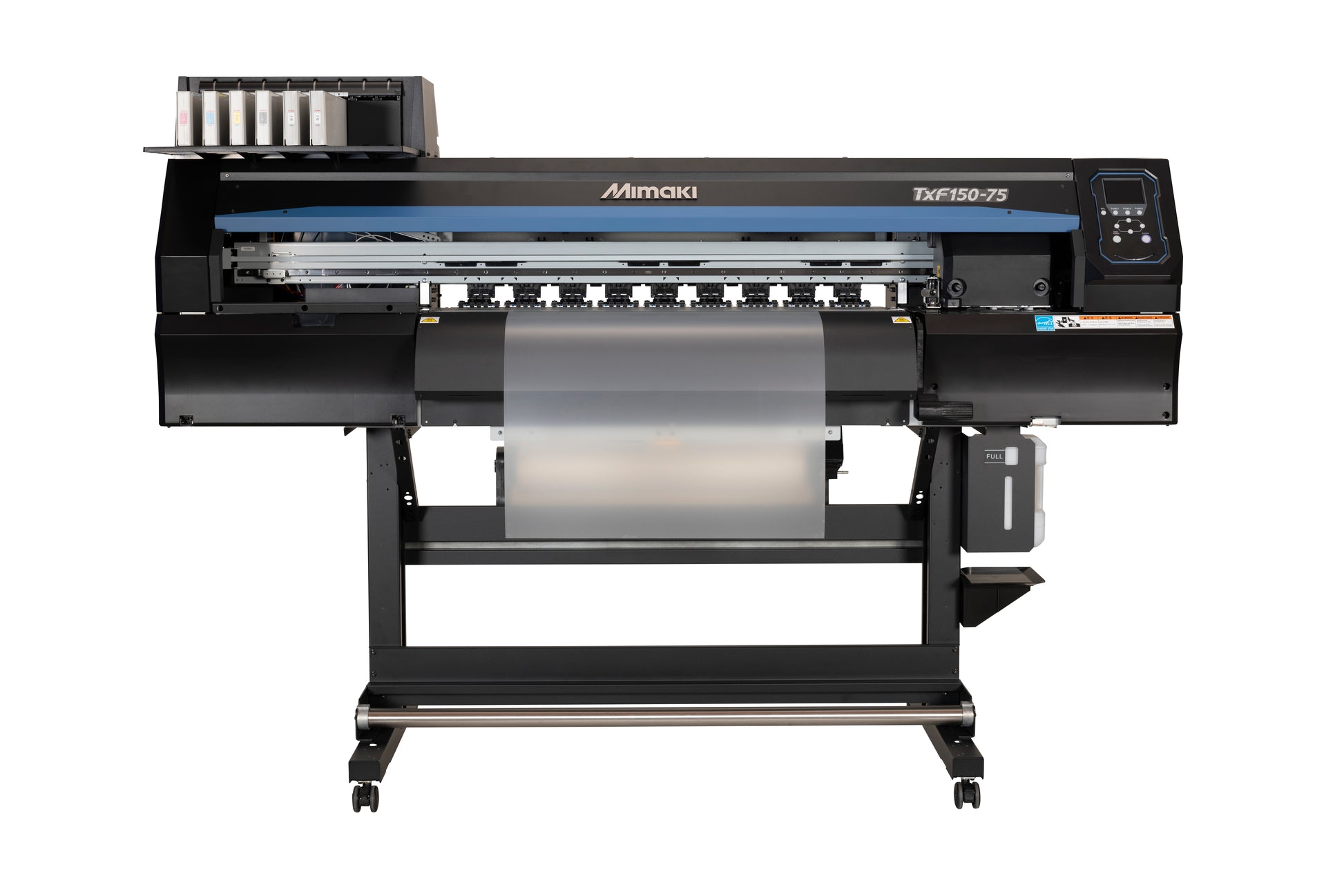

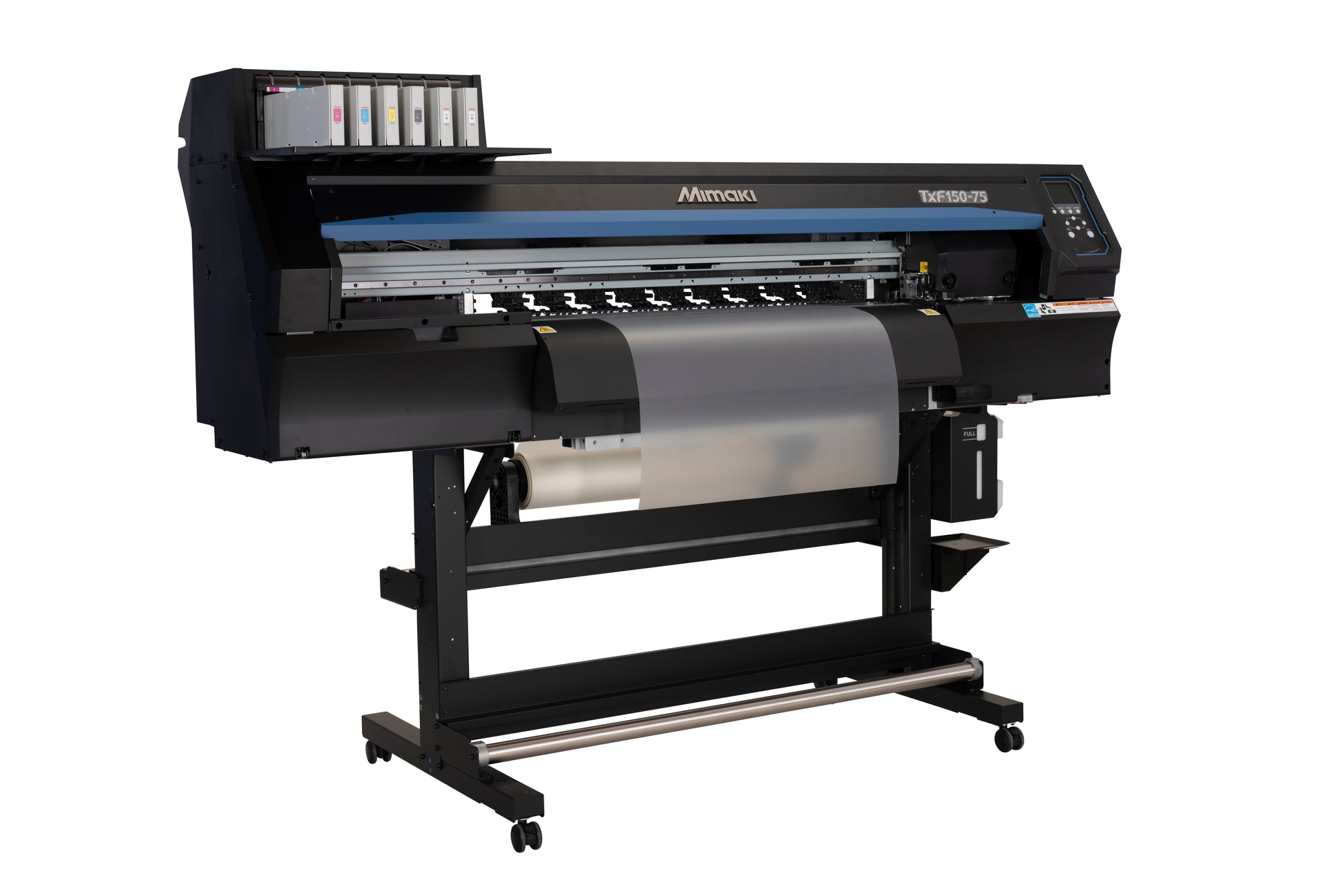

Mimaki's first DTF (Direct To Film) printer
The TxF150-75 is Mimaki’s first DTF (Direct-to-Film) printer, packed with Mimaki technology to overcome the common ink ejection and ink sedimentation issues of current DTF printers in the market. Using genuine Mimaki heat transfer pigment ink, which acquired ECO PASSPORT certification, it assures skin friendly printing at the highest image quality. This unique combination ensures a highly reliable and stable DTF print workflow backed by Mimaki’s industry best service and support.

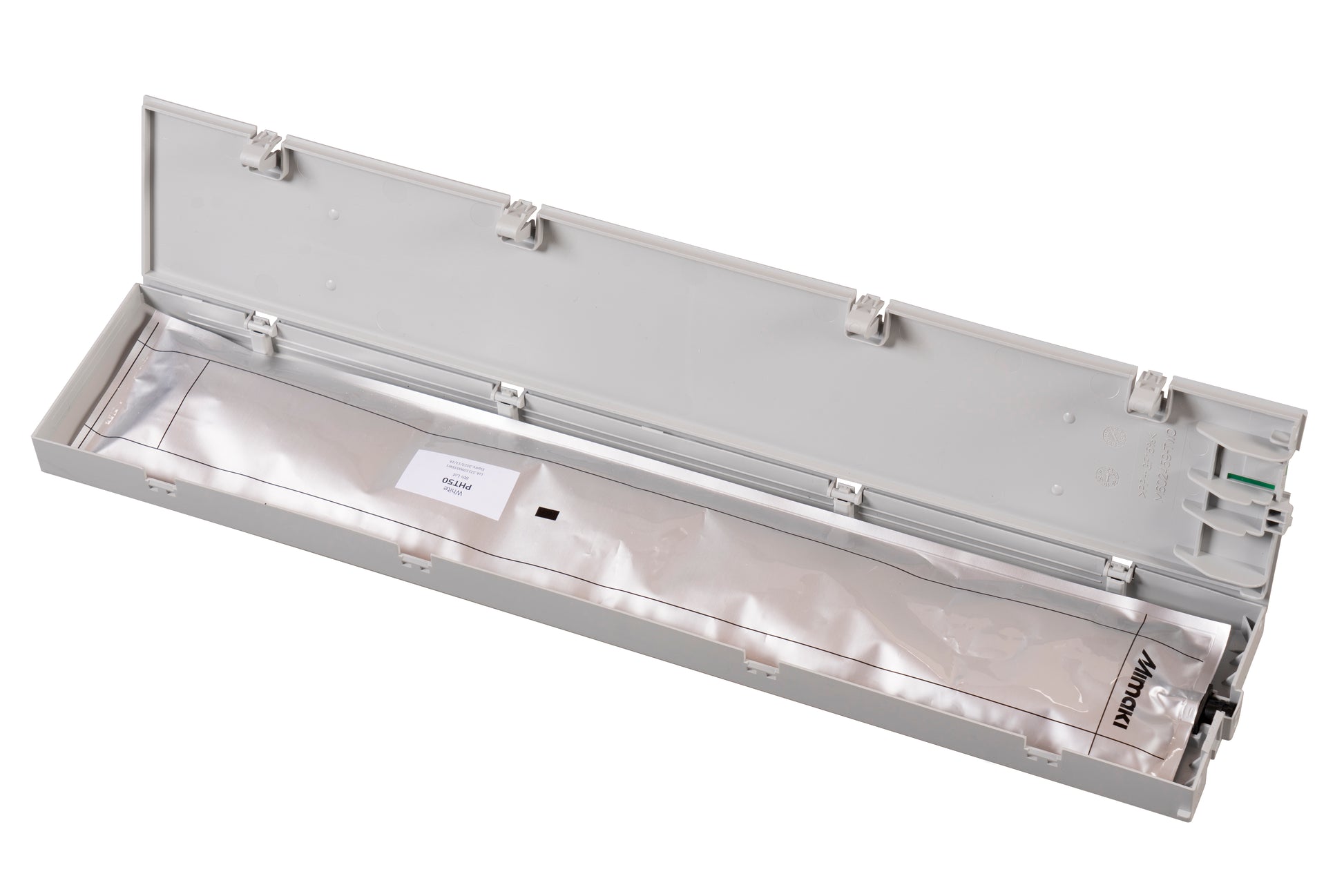

- Degassed Ink Pack: Eliminate air from entering through to the ink supply to the print head, thereby preventing nozzle drop out and ensuring constant high image quality.
- New White Ink Circulation Technology (MCTv2): Prevents white ink sedimentation by continuously circulating the ink all the way to the damper above the print head for continuous high-quality production.
- 3-Way Intelligent Heater: Pre- and print heaters control the spread of ink on the media for blur free image quality and post heater accelerates drying of ink.

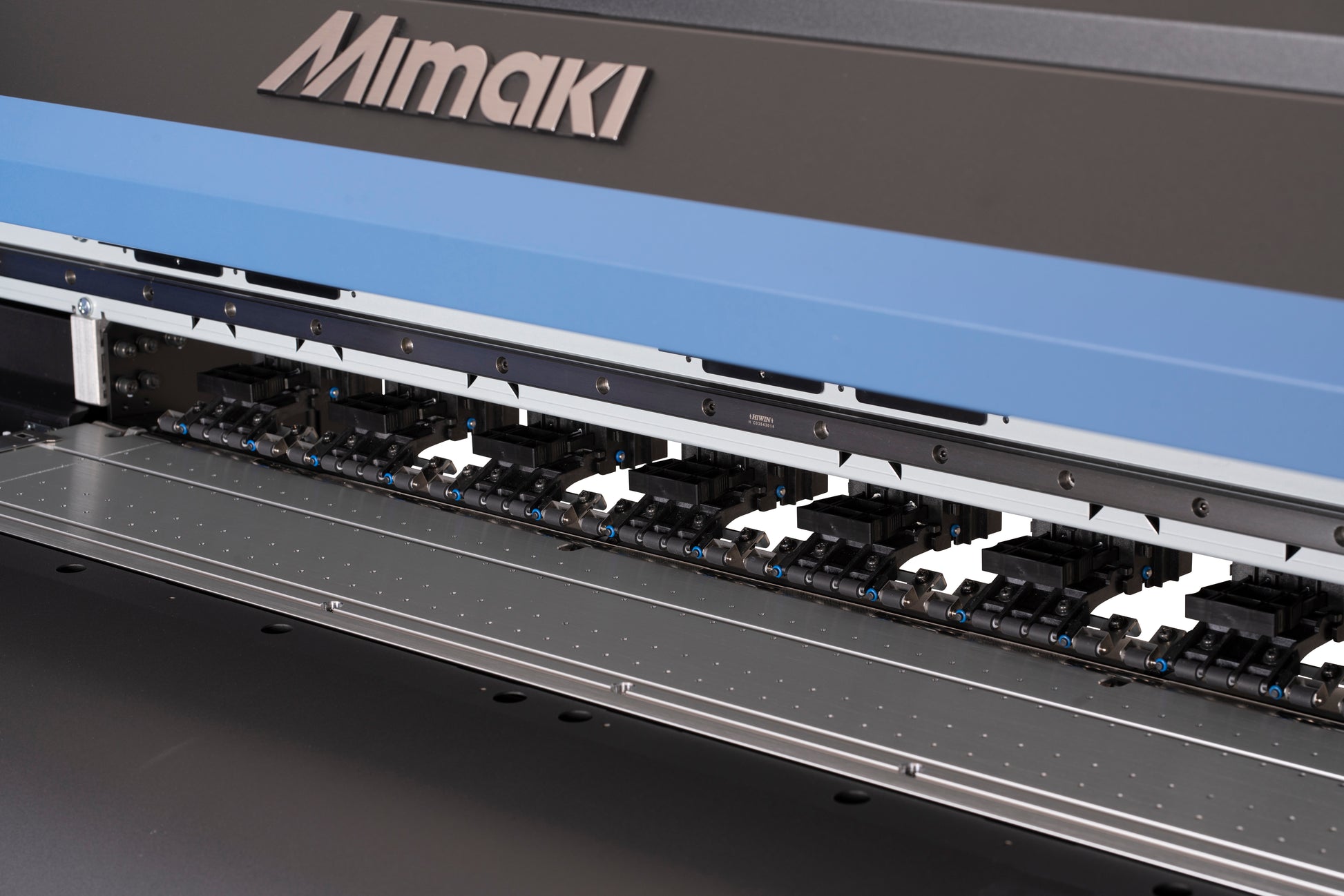

- New Pinch Roller System: Fine-tuned pressure of pinch rollers enabling stable DTF film feeding.
- Nozzle Check Unit (NCU): Automatically checks and detects clogged nozzles and starts cleaning function to recover them.
- Nozzle Recovery System (NRS): When Nozzle Check Unit (NCU) cannot recover clogged nozzle by cleaning function, the Nozzle Recovery System (NRS) automatically substitutes defective nozzles with working ones to ensure constant image quality and uninterrupted production.
- OEKO-TEX® ECO PASSPORT Certification: PHT50 thermal pigment inks are OEKO-TEX® certified. Ensuring the inks are free from any chemicals that could be harmful to human health. PHT50 inks are suitable to print skin-friendly clothing and other textiles for end users.
Specifications
| Printhead |
On-demand piezo head |
| Print resolution |
720dpi, 1,440dpi |
| Print speed (4 color) |
up to 35.5 ft²/hr (3.3m²/hr) |
| Maximum Print Width |
800mm (31.5″in) |
| Maximum media width |
810mm (31.9 in) |
| Maximum Media Thickness |
up to 0.04″ (1 mm) |
| Maximum Media Weight |
Up to 99.2 pounds (45 kg) |
| Ink Type |
Heat transfer pigment ink PHT50 (C,M,Y,K,W) |
| Interface |
Ethernet 1000 BASE-T / USB2.0 |
| Power Supply |
Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 |
| Power Consumption |
100V system: 1.44kW, 200V system: 1.92kW |
| Operational Environment |
Temperature 20° – 30°C |
| Dimensions (W × D × H) |
1,965mm×700mm×1,392mm |
| Weight |
126kg (277.8 lb) |
| Certifications |
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH, Energy Star, RCM, KC |

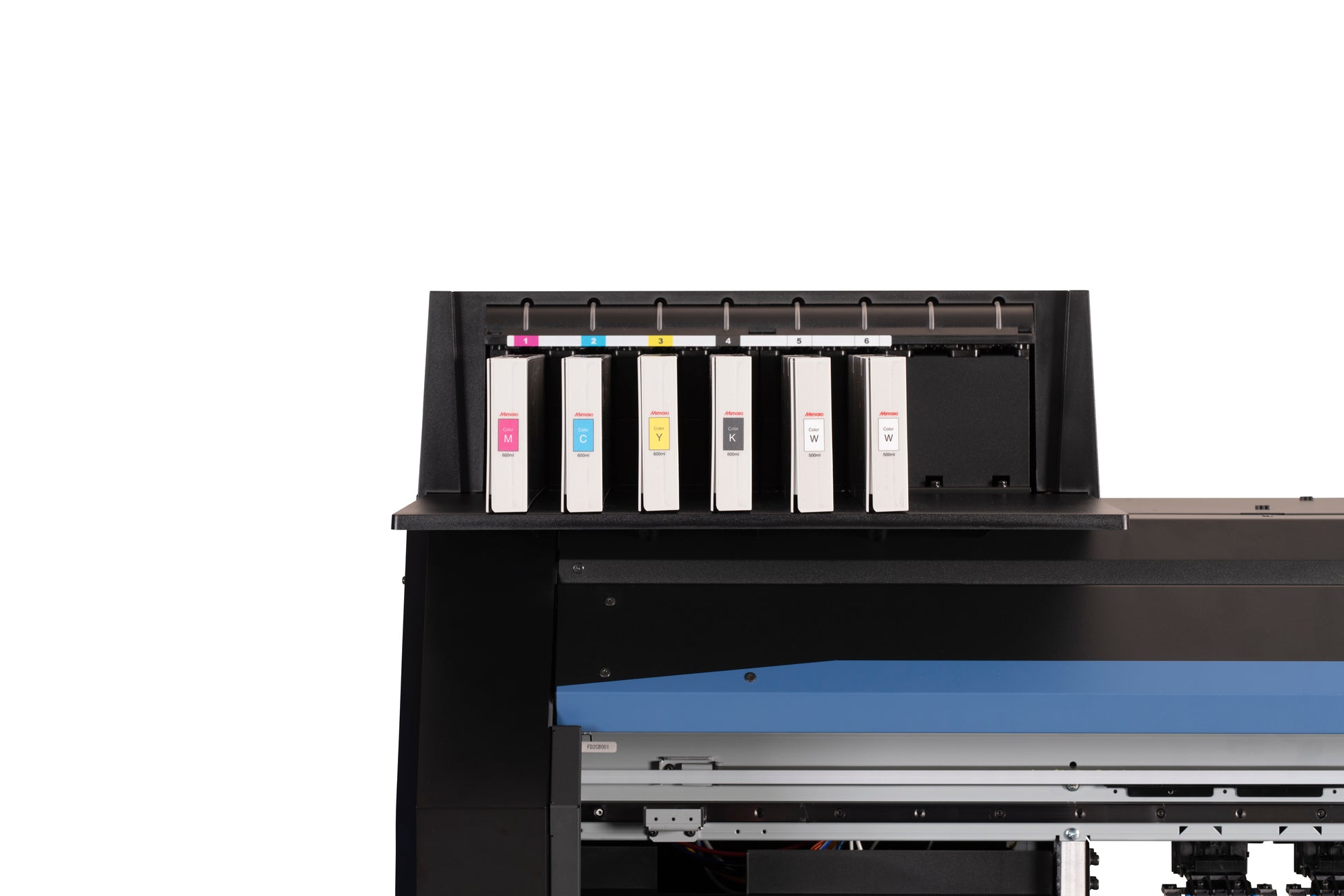

Inks
| Thermal transfer pigment ink (PHT50) | Cyan | Magenta | Yellow | Black | White |
|---|---|---|---|---|---|
| 600ml | PHT50-C-60 | PHT50-M-60 | PHT50-Y-60 | PHT50-K-60 | |
| 500ml | PHT50-W-50 |
