JFX200-1213

Name: JFX200-1213
Brand: Mimaki
Price: 64995.0 USD
Availability: InStock

$64,995.00 USD

Sale Sold out

Quantity

About the Product

Small size, Big Hitter

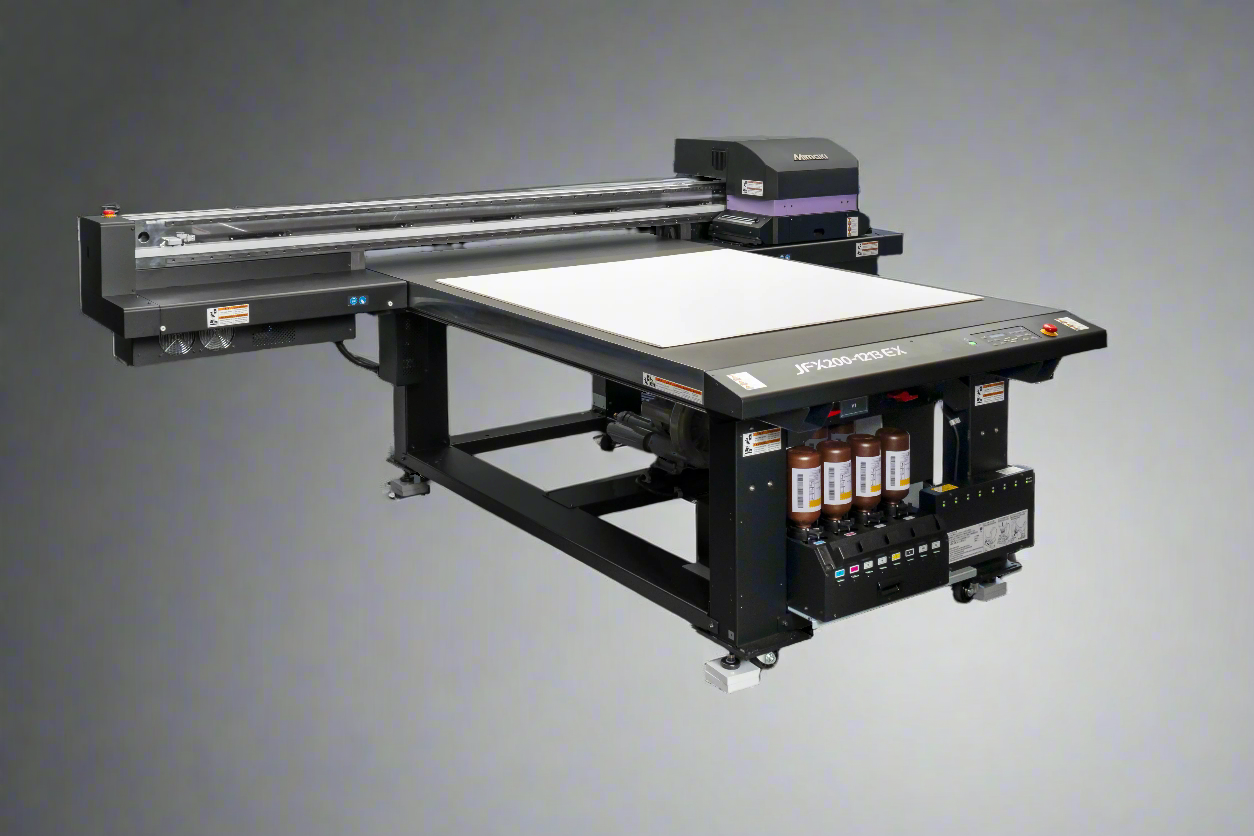

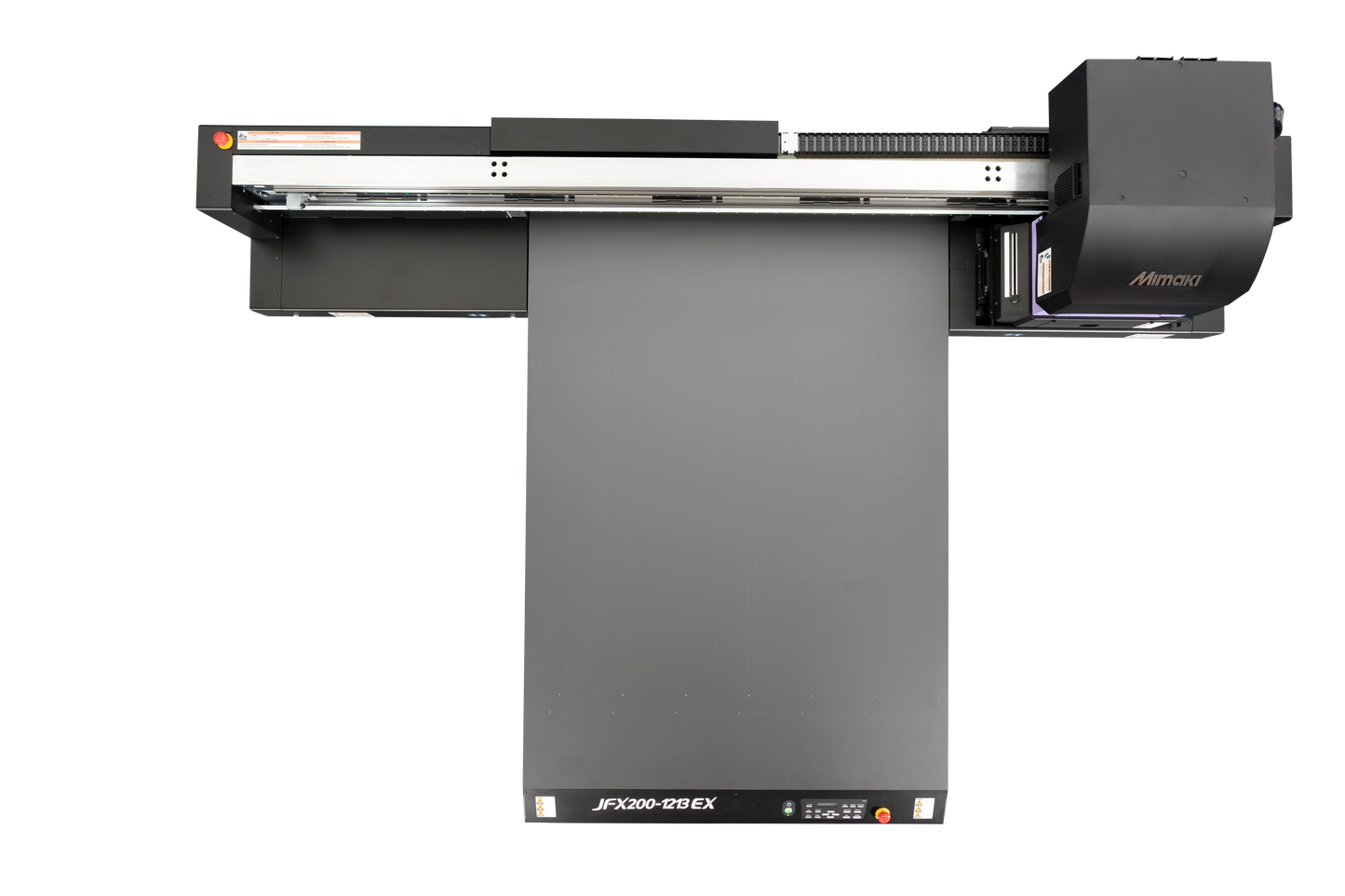

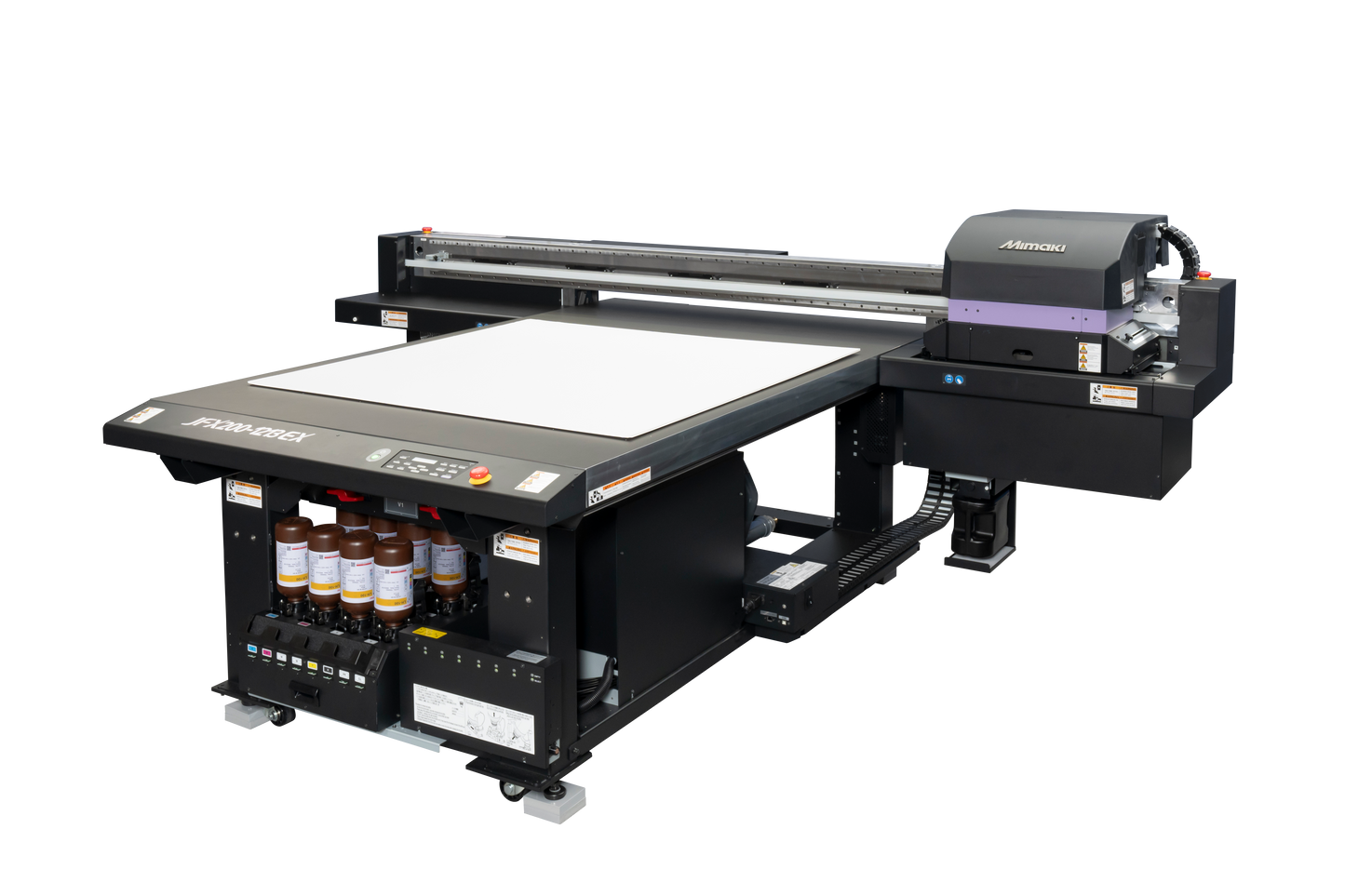

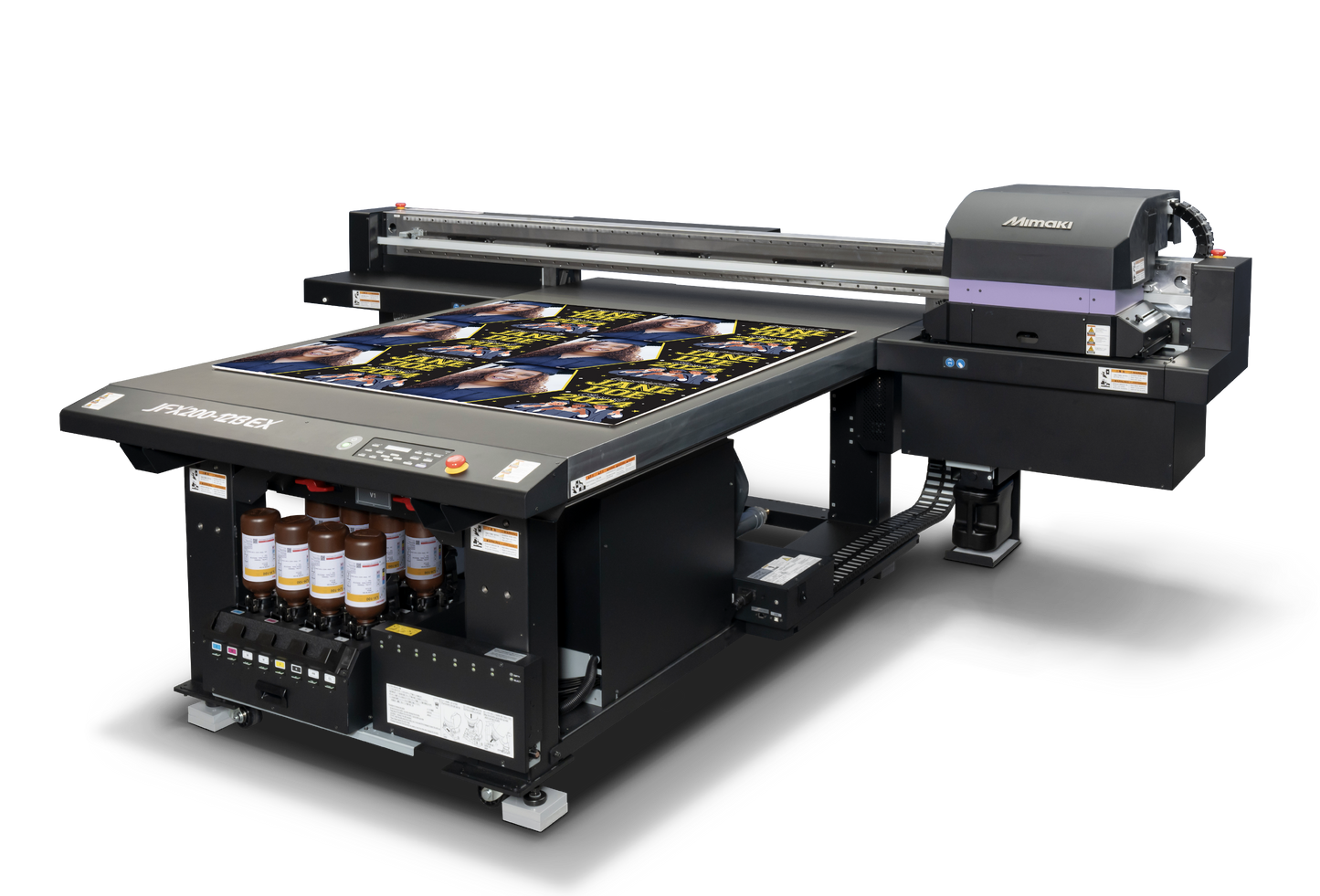

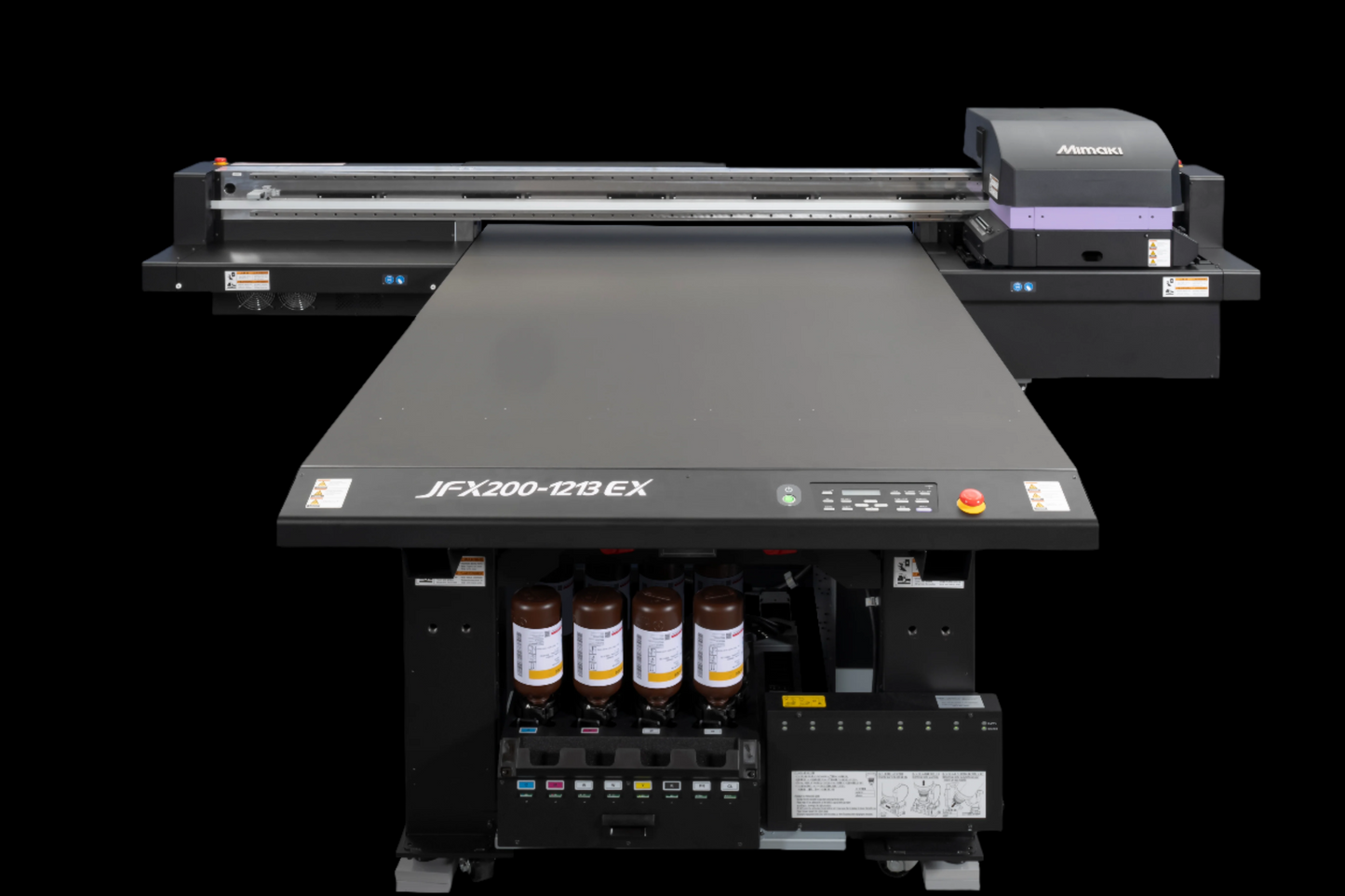

The Mimaki JFX200-1213 EX medium-format UV-LED flatbed printer is engineered for small to medium volume production, offering wide-format printing capabilities in a compact footprint. It meets the needs of print service providers and in-house print shops with limited space, delivering high-quality outputs across various applications, including textured surfaces, ADA-compliant signage, and jig workflows.

Compact medium format design enables businesses to expand their production capabilities without requiring the space of a traditional wide-format printer.
High versatility inks for printing to a wide range of rigid and flexible surfaces.
Capable of producing 2.5D textures and ADA signage.

Produce medium production volumes, such as printing multiple 18”x 24” signs simultaneously, or jig printing.
IoT ready, Remote monitoring available through Mimaki PICT software for performance and production monitoring and event notification.
Uses Greenguard Gold certified inks.

Specifications

Printhead	Three staggered on-demand piezo heads
Print resolution	300, 450, 600, 900, 1,200dpi
Print Speed (4 Color Mode)	up to 269 SqFt/Hr (25 m2/h)
Maximum Print Area	50.0 in x 51.2 in (1270 mm x 1300 mm)
Maximum media area	52 in x 54 in (1320 mm x 1370 mm)
Maximum Media Thickness	up to 1.97″ (50 mm)
Maximum Media Weight	110.3 lbs. (50.0 kg)
Ink Type	Rigid: LH-100 ink; C, M, Y, K, Lc, Lm, W, Cl Flexible: LUS-150 ink; C, M, Y, K, Lc, Lm, W with LUS-100 Cl LUS-120 ink; C, M, Y, K, W, Cl LUS-350 ink; C, M, Y, K, W, Cl
Interface	Ethernet 10,000 BASE-T
Power Supply	Single phase AC200-240±10% 50/60 Hz±1 Hz x 1
Power Consumption	2.88 kVA or less
Operational Environment	Temperature 68° – 86° F (15-30° C) Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H)	125 in W x 96 in D x 49 in H (3175 mm W x 2450 mm D x 1250 mm H)
Weight	1124 lbs. (510 kg)
Certifications	VCCI Class A, CE Mark, CB Report, US safety standard UL (UL62368-1),RoHS Directive, FCC Class A, Machinery Directive, RCM

Inks

JFX200-1213 EX	Cyan	Magenta	Yellow	Black	Light Cyan	Light Magenta	White	Clear	Primer
UV Curable Ink (LH-100) 1L Bottle	LH100-C-BA	LH100-M-BA	LH100-Y-BA	LH100-K-BA			LH100-W-BA	LH100-CL-BA
UV Curable Ink (LUS-120) 1L Bottle	LUS12-C-BA	LUS12-M-BA	LUS12-Y-BA	LUS12-K-BA			LUS12-W-BA	LUS12-CL-BA
UV Curable Ink (LUS-150) 1L Bottle	LUS15-C-BA	LUS15-M-BA	LUS15-Y-BA	LUS15-K-BA	LUS15-LC-BA	LUS15-LM-BA	LUS15-W-BA	(Use LH-100)
UV Curable Ink (LUS-350) 1L Bottle	LUS35-C-BA	LUS35-M-BA	LUS35-Y-BA	LUS35-K-BA			LUS35-W-BA	LUS35-CL-BA
UV Primer (PR-200) 1L Bottle									PR-200-Z-BA
